Shapes
Shower Tray Shapes
Choose the right shower tray shape for your bathroom, enclosure and available floor space. From practical rectangular and square trays to space-saving quadrant and offset quadrant designs, the shape of the tray is one of the most important decisions when planning a new shower or replacing an existing installation.
Which Shower Tray Shape Is Right for You?
The shape of a shower tray determines far more than its appearance. It affects how much floor space the shower occupies, where the enclosure can sit, how much usable showering room is available and how easily the tray can work with the surrounding bathroom.
Shower Tray Store's current shape range includes rectangular, square, quadrant, offset quadrant and bespoke shower trays. These shapes cover many of the most common bathroom layouts, from compact corner showers through to large walk-in-style rectangular installations.
The best shape is therefore not simply the one that fits the available floor area. It is the shape that works with the enclosure, door opening, surrounding fixtures, waste position and way you want the finished shower to look and function.
Explore Shower Tray Shapes

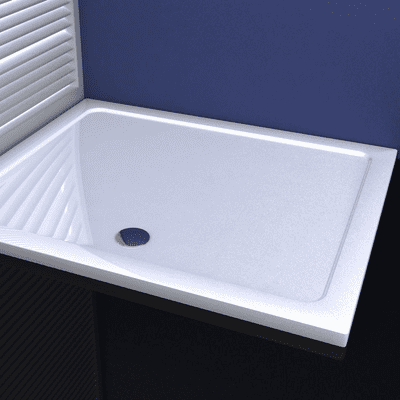

Rectangular Shower Trays
Versatile and available in many proportions, rectangular trays work particularly well where one dimension can be longer than the other. They are suitable for alcoves, larger shower enclosures and many contemporary bathrooms.

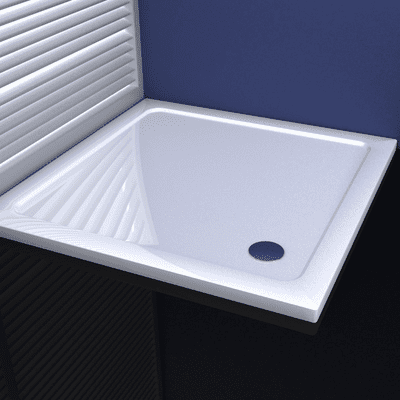

Square Shower Trays
A balanced footprint that works particularly well in compact bathrooms and corner installations. Square trays can provide a generous shower area without requiring a long rectangular footprint.

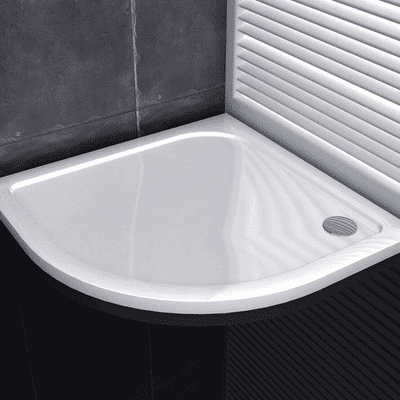

Quadrant Shower Trays
Designed with a curved front, quadrant trays are intended for corner installations and can reduce the amount of floor space projecting into the room.

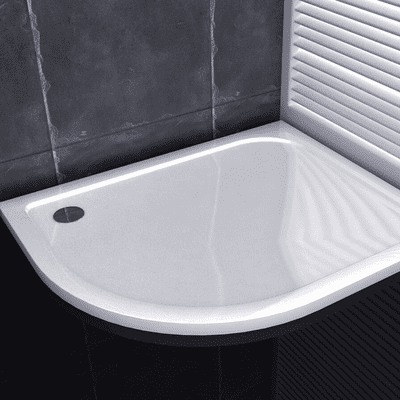

Offset Quadrant Shower Trays
Combining a curved front with a longer and shorter side, offset quadrants provide additional showering space while retaining a corner-friendly shape.
Bespoke Shower Trays
Made-to-measure solutions can be considered where standard shapes and dimensions cannot accommodate an unusual room, enclosure or replacement requirement.
Shape + Size
Shape and dimensions work together. A 900mm square tray and a 1200mm x 900mm rectangular tray occupy very different footprints and create different enclosure possibilities.
Rectangular Shower Trays
Rectangular shower trays are among the most flexible choices for bathroom design because their two dimensions do not have to be equal. This makes it easier to work with rooms where one wall offers considerably more space than another.
A rectangular tray can be positioned within a recess, along a bathroom wall or as part of a larger open shower area. Larger rectangular formats can also create a more spacious showering zone without requiring the curved front of a quadrant design.
Current products demonstrate the broad range available in this shape. The Shower Tray Store range includes rectangular trays such as a 1000mm x 800mm MX Durastone, a 1200mm x 760mm Ultra Pearlstone and larger rectangular steel options from Kaldewei.
| Rectangular Layout | Potential Advantage | What to Check |
|---|---|---|
| Recess installation | Makes efficient use of three surrounding walls. | Measure the finished opening between walls. |
| Long shower area | Provides additional length for a more spacious enclosure. | Allow for the door or screen arrangement. |
| Large walk-in layout | Can provide a generous shower footprint for an open enclosure. | Plan drainage, screen position and finished floor level together. |
| Replacement bathroom | Large choice of standard dimensions can make like-for-like replacement easier. | Compare the old tray's exact dimensions and waste location. |
Square Shower Trays
Square shower trays offer a simple, balanced footprint and are particularly useful where the shower is positioned into a corner or where the available space is broadly equal in both directions.
They can be an effective choice for compact bathrooms because there is no need to accommodate the longer dimension of a rectangular tray. Square trays are also straightforward to pair with compatible square shower enclosures.
For example, the MX Elements square range is available in multiple sizes and uses an acrylic-capped resin construction with a 40mm low-profile design.
Square Does Not Mean Small
Square trays are available across a range of dimensions. The right size should be determined by the available room, enclosure and desired showering area rather than assuming that square trays are only suitable for compact bathrooms.
Quadrant Shower Trays
Quadrant shower trays are characterised by their curved front and are designed primarily for corner installations. The curved edge reduces the amount of tray projecting into the room compared with a square or rectangular footprint occupying the same corner area.
This makes quadrant trays particularly useful where bathroom circulation space is limited. They are commonly paired with curved quadrant shower enclosures, creating a coordinated corner installation.
Available sizes vary by manufacturer and product range. The Shower Tray Store currently lists 800mm quadrant products as well as larger quadrant options, including low-profile stone resin designs in its Premium range.
Offset Quadrant Shower Trays
Offset quadrant trays retain the curved front of a quadrant but use unequal side dimensions. This creates a useful middle ground between the compact footprint of a standard quadrant and the longer showering area available from a rectangular tray.
They are particularly useful when the bathroom has more available space in one direction than the other. An offset quadrant can therefore provide additional internal showering room without extending the full width of a conventional rectangle into the bathroom.
When selecting an offset quadrant, left-hand and right-hand orientation can be important. For example, current Mira Flight Safe products include a 1200mm x 900mm left-hand offset quadrant tray, showing why the handing of the enclosure and tray needs to be checked before ordering.
| Shape | Typical Layout | Space Character | Enclosure Consideration |
|---|---|---|---|
| Square | Corner or compact bathroom | Balanced footprint | Square enclosure or compatible corner screen |
| Rectangular | Recess, wall or large shower area | Flexible proportions | Sliding, hinged, fixed or walk-in arrangements depending on size |
| Quadrant | Corner installation | Curved front saves projection into room | Quadrant enclosure required |
| Offset Quadrant | Corner installation with unequal sides | More showering length than a standard quadrant | Check handedness and matching offset enclosure |
| Bespoke | Unusual or restricted layout | Custom footprint | Enclosure must be planned around the final tray geometry |
Shower Tray Shape & Enclosure Compatibility
The shower tray and enclosure should be treated as a single design decision. Choosing the tray first and attempting to find a suitable enclosure afterwards can unnecessarily restrict the options available.
For square and rectangular trays, the enclosure may be positioned across the front, within a recess or alongside a wall depending on the installation. Quadrant trays require a matching curved enclosure, while offset quadrant trays require the correct dimensions and handing.
Choosing a Shower Tray Shape for a Small Bathroom
In a compact bathroom, the shape of the tray can have a noticeable effect on circulation space. A quadrant tray can reduce the amount of curved frontage projecting into the room, while a square tray can make efficient use of a straightforward corner.
A rectangular tray can be preferable where the bathroom has a narrow but relatively long area available for showering. An offset quadrant can offer another option when additional length is available along one wall.
Do not choose based solely on the tray's nominal dimensions. Consider the complete footprint, including the enclosure, door swing or sliding mechanism and the space needed to enter the shower comfortably.
Choosing a Shape for a Large Shower
For larger bathrooms, rectangular trays provide considerable flexibility because the length and width can be varied independently. This makes them particularly useful for walk-in shower arrangements and larger contemporary enclosures.
Large rectangular steel trays are one example of this approach. The Kaldewei Superplan XXL range includes a 900mm x 1600mm rectangular option with a 32mm tray height and provision for flush-to-floor installation.
Compact Corner
Consider square or quadrant shapes where preserving circulation space is important.
Longer Corner
An offset quadrant can provide additional length while retaining a curved front.
Recessed Shower
Rectangular trays are particularly versatile where the shower occupies a wall-to-wall recess.
Walk-In Area
Larger rectangular footprints can create generous open showering areas.
Replacement
Match the existing shape before considering whether a different footprint would require enclosure or tiling changes.
Unusual Space
Where standard shapes cannot make the best use of the room, consider a bespoke specification.
Shape Is Only One Part of the Specification
Once you have chosen the footprint, there are several other characteristics to consider. A rectangular tray, for example, may be available as low profile, stone resin, acrylic-capped, anti-slip, antibacterial, Easy Plumb, marble-effect or another specialist configuration.
This means there is no single “best” shower tray shape. The correct shape depends on the room, while the construction and features determine how the tray performs within that layout.
| Decision | Question to Ask |
|---|---|
| Shape | What footprint works best in the available room? |
| Size | What length and width provide the required showering area? |
| Profile | Do you need low profile or a deeper traditional tray? |
| Material | Would stone resin, acrylic-capped resin, steel or another construction suit the installation? |
| Surface | Is a plain, anti-slip, marble-effect or stone-effect finish required? |
| Installation | Will the tray be floor-mounted, raised with an Easy Plumb kit or integrated into a wet room? |
| Drainage | Where does the waste need to sit and how will it connect to the existing pipework? |
Bespoke Shower Tray Shapes
Not every bathroom fits a standard square, rectangular, quadrant or offset quadrant footprint. Older properties, unusual room layouts, architectural features and replacement projects can all create situations where a conventional tray does not make efficient use of the available space.
Bespoke shower trays can provide a route to a custom footprint where standard options cannot achieve the required dimensions or geometry. Before specifying a bespoke tray, however, it is worth checking all available standard sizes, as a stocked tray can provide a simpler installation where the dimensions work.
Measure the Finished Space Before Choosing the Shape
Measure between finished wall surfaces and account for tiles, wall panels, boxing, skirting, doors and other obstructions. For replacement projects, also check the existing waste position and enclosure dimensions. Accurate measurements make it much easier to identify the most suitable tray shape.
Shower Tray Shapes for Replacement Projects
Replacing a shower tray is not always as straightforward as matching its length and width. The existing shape determines the enclosure, while the tray's waste position, height and edge configuration can affect the surrounding installation.
If the original tray is rectangular, replacing it with a different shape may mean changing the shower enclosure and potentially altering wall finishes. Similarly, changing from a quadrant to an offset quadrant can provide additional shower space but requires a compatible enclosure.
For a like-for-like replacement, record the old tray's shape, exact dimensions, height, waste position and enclosure configuration before ordering.
How to Choose the Right Shower Tray Shape
Find Your Shower Tray by Shape
Whether you need a compact square tray, a curved quadrant for a corner bathroom, an offset quadrant for extra showering space or a large rectangular tray for a contemporary walk-in design, choosing the correct footprint is the foundation of a successful installation.
Once the shape is established, you can narrow the range further by size, profile, material, colour, finish, installation method and specialist features. This approach makes it easier to find a shower tray that works both visually and practically within the finished bathroom.
Find the Right Shower Tray Shape
Explore rectangular, square, quadrant, offset quadrant and bespoke shower trays, then refine your choice by size, material, profile and finish. Find a footprint that works with your bathroom, shower enclosure and installation requirements.
